Main applications:
– Motor controls (AC Motor Speed Control)
– UPS Systems
– Inverters/Converters
– Microwave ovens
– Electric cars
– Switch Mode Power Supplies
– SCR Commutation (Silicon Contolled Rectifier)
– Welding, Arc/Welding Equipment

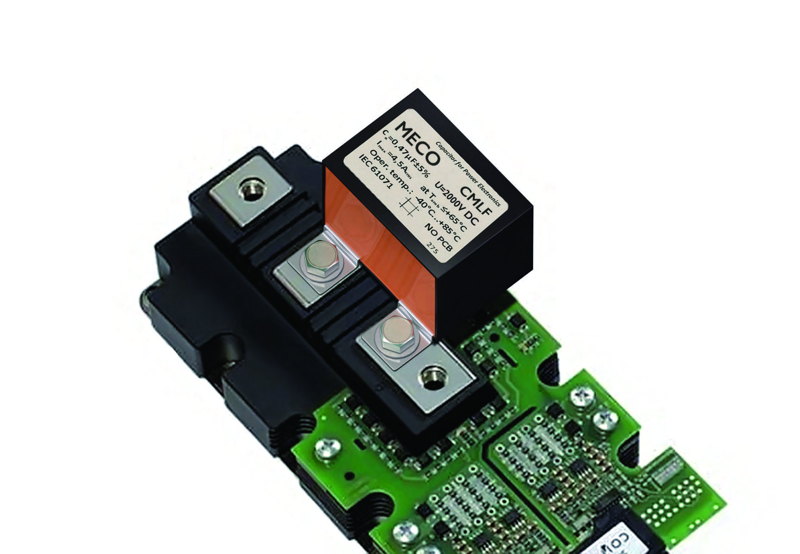

CMLF Series
Capacitors specifically designed for snubber and resonance circuits, pulse and high loads due to double sided metallization
| Caratteristiche tecniche | |
|---|---|
| Technical details | |
| Tensione nominale DC (UNDC) | 700, 850, 1000, 1200, 1500, 2000, |
| Rated DC voltage (UNDC) | 2500, 3000 |
| Range capacità | 0,047 µF -> 12 µF |
| Capacitance range | |
| Tolleranza capacità | ±10% |
| Capacitance tolerance | |
| Fattore dissipazione (DF) | Tg∂ x10-4, 1kHz |
| Dissipation factor (DF) | |
| Dispositivo di sicurezza | NO |
| Safety device | |
| Categoria climatica | 40/85/56 |
| Climatic category | |
| Temperatura massima d’esercizio -Ѳmax | 85°C |
| Maximum operating temperature -Ѳmax | |
| Temperatura minima d’esercizio -Ѳmin | -40°C |
| Minimum operating temperature -Ѳmin | |
| Tensione di prova | tra i terminali: 1,6UR/10” |
| verso massa: 3kV/60” | |
| Test voltage | between terminals: 1,5UR/10” |
| between terminals and case: 3kV/60” | |
| Terminali | Piastrine capocorda in rame stagnato |
| (ottone) (senza piombo) | |
| Terminals | Tinned copper (brass) lugs (lead-free) |
| Corrente massima terminali | 100A |
| Maximum terminal current | |
| Materiale contenitore | Plastica VO autoestinguente UL94 |
| Case material | UL94 Self-extinguishing VO plastic |
| Grado di protezione | IP00 |
| Protection degree | |
| Norma di riferimento | IEC 61071-1 IEC 60068-1 |
| Reference standard | |
| Aspettativa di vita | ≥100000 h |
| Life expectancy | |
| Umidità relativa | 93±2% |
| Relative humidity | |
| Altitudine | ≤2000 mslm masl |
| Altitude |
WARNINGS
Improper use of the capacitor such as, for example, applications that involve exceeding the capacities and/or characteristics reported on a given capacitor, can cause an irreversible breakdown and/or breakage that can occur with the explosion of capacitor or with a deterioration such as to manifest loss of capacity, increase of power factor and permanent circuit interruption. Meco Capacitors declines any responsibility for damage to the capacitors, to persons or things deriving from improper or incorrect use of their products.
